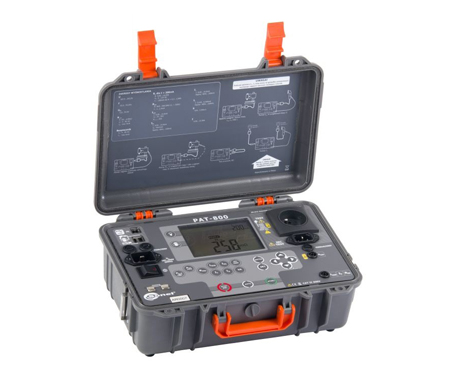

PAT-800 digital meter is used to measure the basic parameters of portable electrical equipment (power tools, white goods, etc.) which determine their safety: resistance of protective conductors, insulation resistance, continuity of connections, leakage current, power.
PAT-800 can be used to test the equipment performed in accordance with standards:
- EN 60745-1 Hand-held motor-operated electric tools. Safety. General requirements
- EN 61029 Safety of transportable motor-operated electric tools - General requirements
- EN 60335-1 Household and similar electrical appliances -Safety -Part 1: General requirements
- EN 60950 Safety of information technology equipment (IT Equipment)
Basic functions:
- measurement of protective conductor resistance with the currents: 200mA,
- measurement of insulation resistance measurement voltage 500V
- measurement of equivalent leakage current,
- measurement of PE leakage current,
- measurement of residual leakage current,
- measurement of touch leakage current,
- measurement of equivalent leakage current,
- measurement of power,
- measurement of current consumption,
- IEC lead test.
Other:
- automatic measurement range selection,
- 990 memory cells for measurement results with option of uploading to a PC through a USB port or printing,
- professional software for data processing and reporting,
- cooperation with a barcode reader and printer,
- supports pendrive flash memory,
- large and clear graphic display with backlight,
- ergonomic operation.
